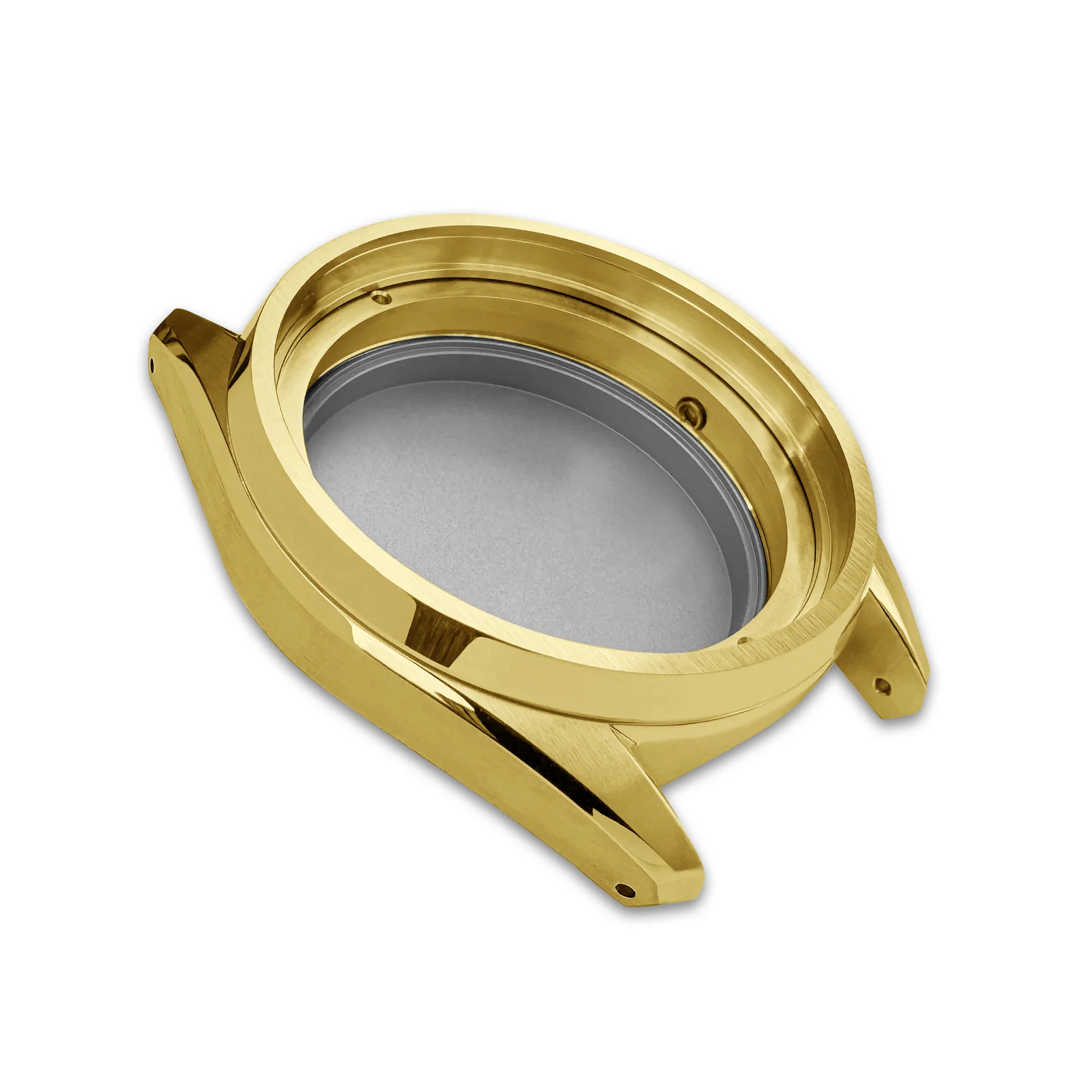

Case - SRPE GS EVO. - Polished/Brushed PVD Gold (With Case Back)

Designing the GS EVO case involved multiple mock-ups and meticulously refining details such as the sculpted lines on the sides and the intricate lugs. Careful considerations were made to ensure the case is aesthetically pleasing from all angles, while working within the constraints of SRPE dimensions.

The GS EVO stands out among other cases of similar design. The multifaceted case features a mix of high-grade polish and premium brushed surfaces, while retaining crisp lines and sharp edges. With these refinements, each facet of the case catches the light in a unique way, enhancing the watch's visual depth and complexity.

Specifications
Material - 316L steel
Bezel Finishing - Brushed top and polished sides
Lugs Finishing - Brushed top and sides, with polished bevels
Case Finishing - Brushed sides
Lugs Design - With drilled holes
Case Back Finishing - Brushed steel

Dimensions
Diameter - 38 mm (excluding crown)
Lug to Lug - 44.5 mm
Lug width - 20 mm
Wears similar to original 5 SRPE series on the wrist
Click here for size comparison with other cases

Application
All parts & straps interchangeable with
- 5 SRPE 51, 53, 55, 57, 61, 63, 65, 67, 69
Suitable movements
- 4R36, NH35, NH36, NH34 GMT (requires double dome crystal)
Suitable dials and hands
- SKX007, 5 SRPD, 5 SRPE series, etc
- All DLW dials and hands

Special note
Please use the custom crystal gasket provided. The original 5 SRPE crystal gasket is incompatible due to a slight increase in bezel height to accommodate GMT mods.

Includes
Case Back x 1 pc
Case Back Gasket x 1 pc
Crystal Gasket x 1 pc
